Description

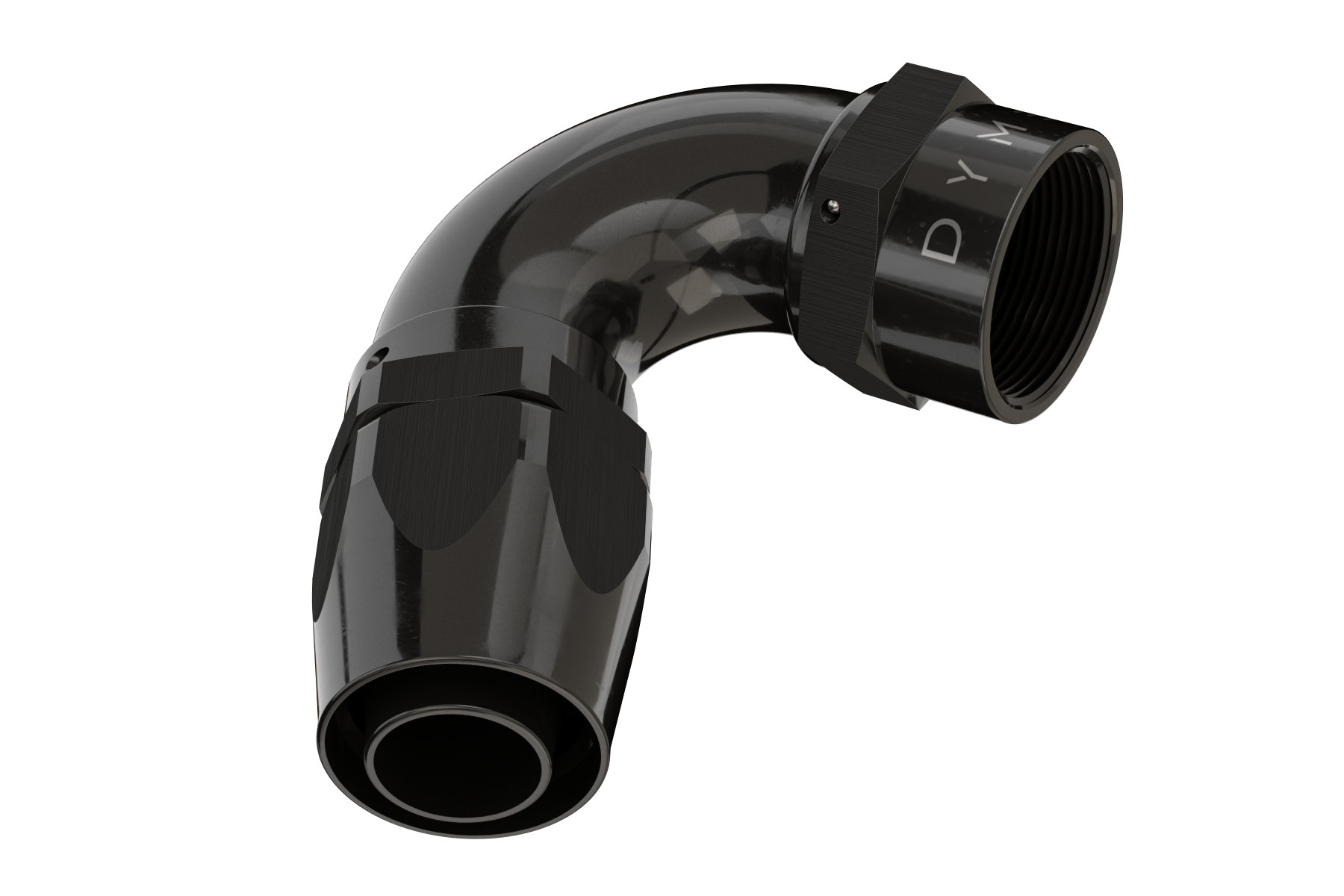

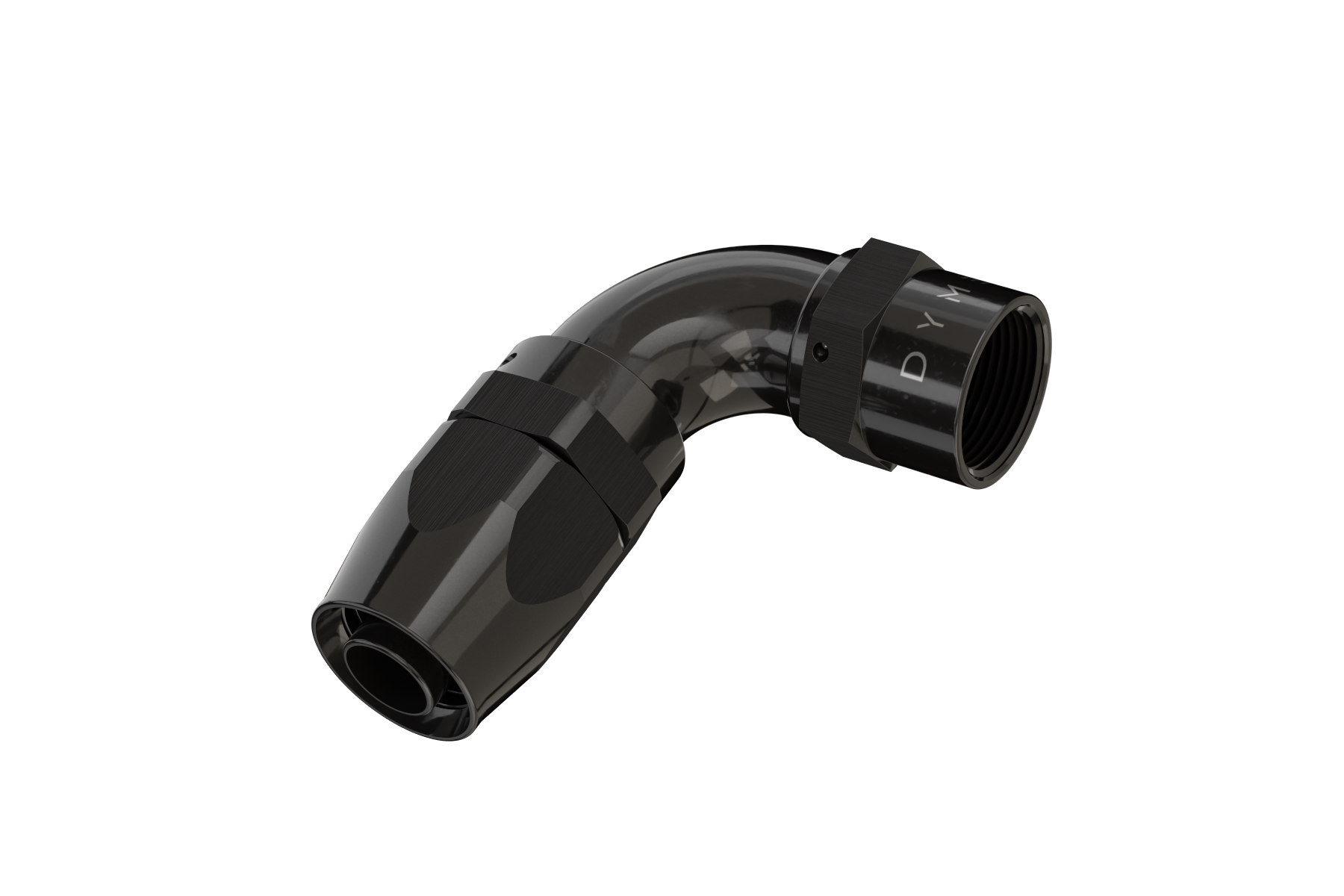

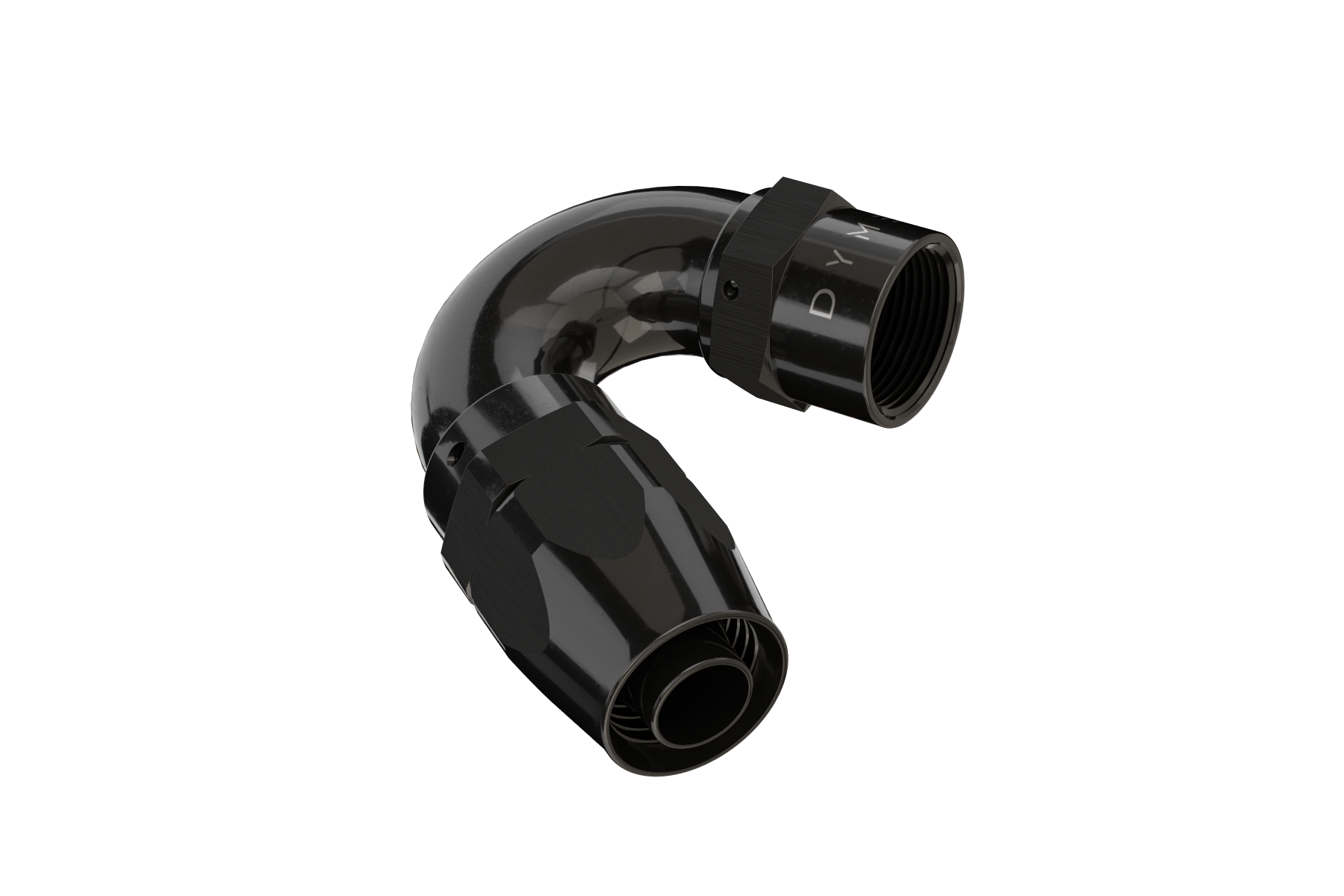

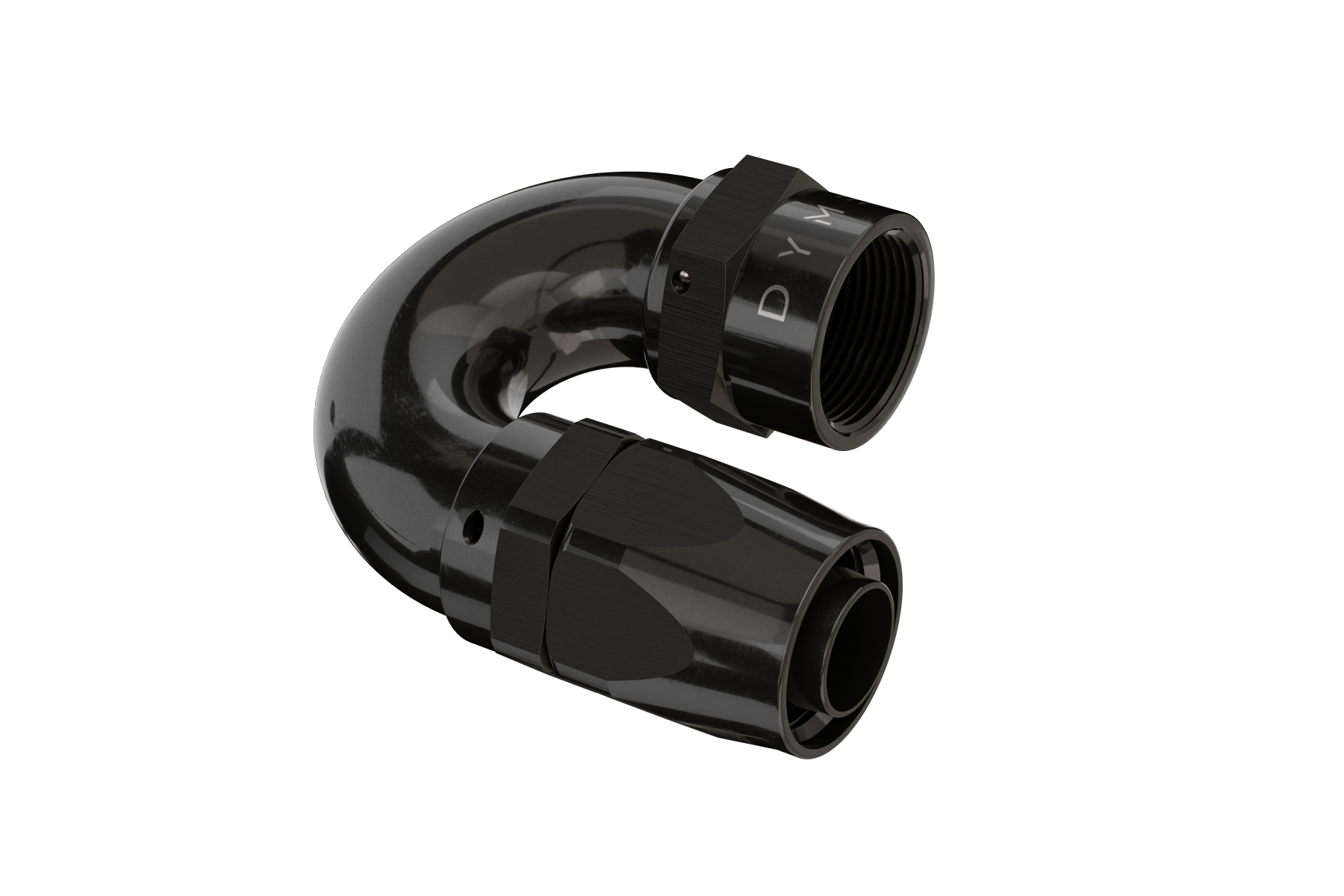

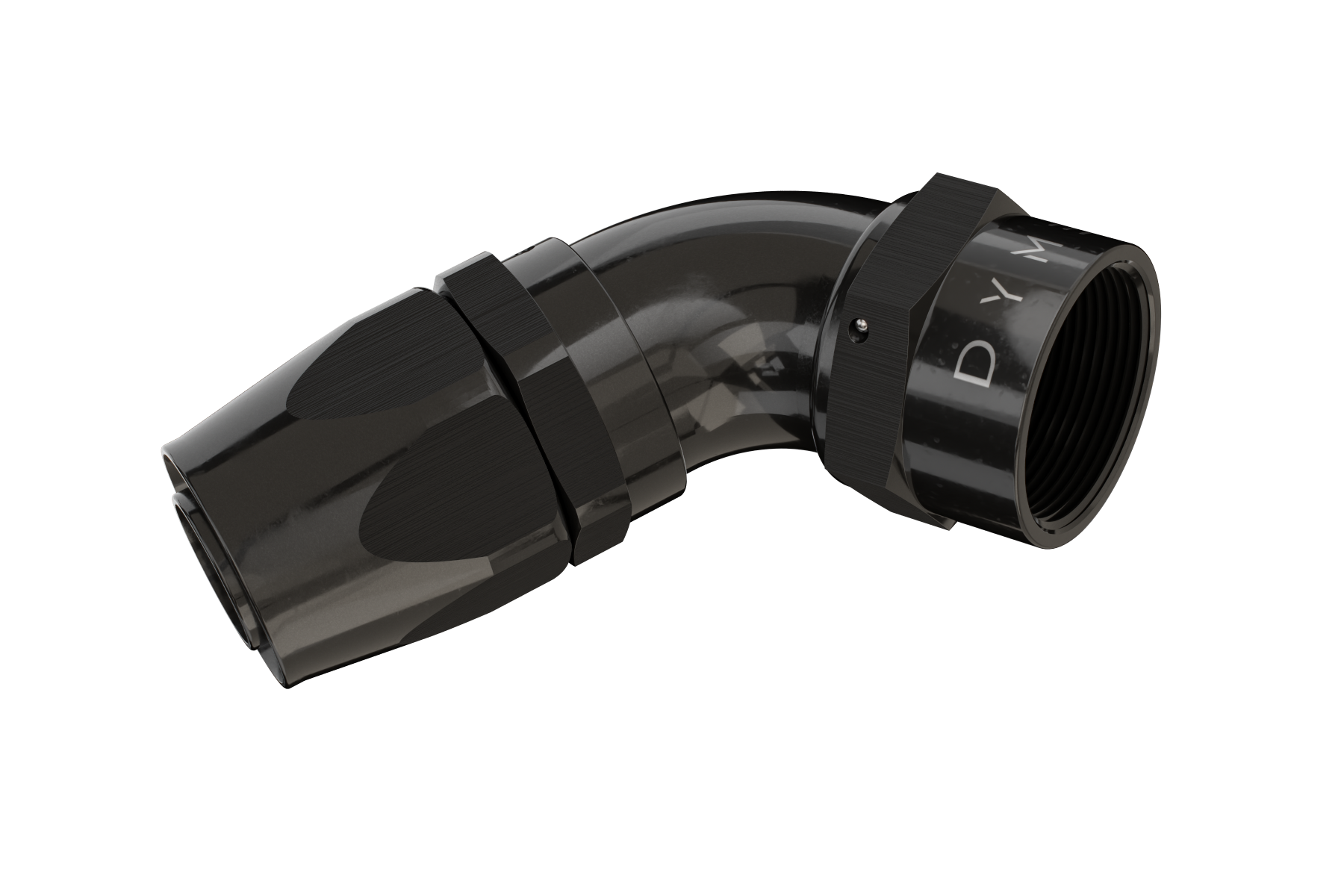

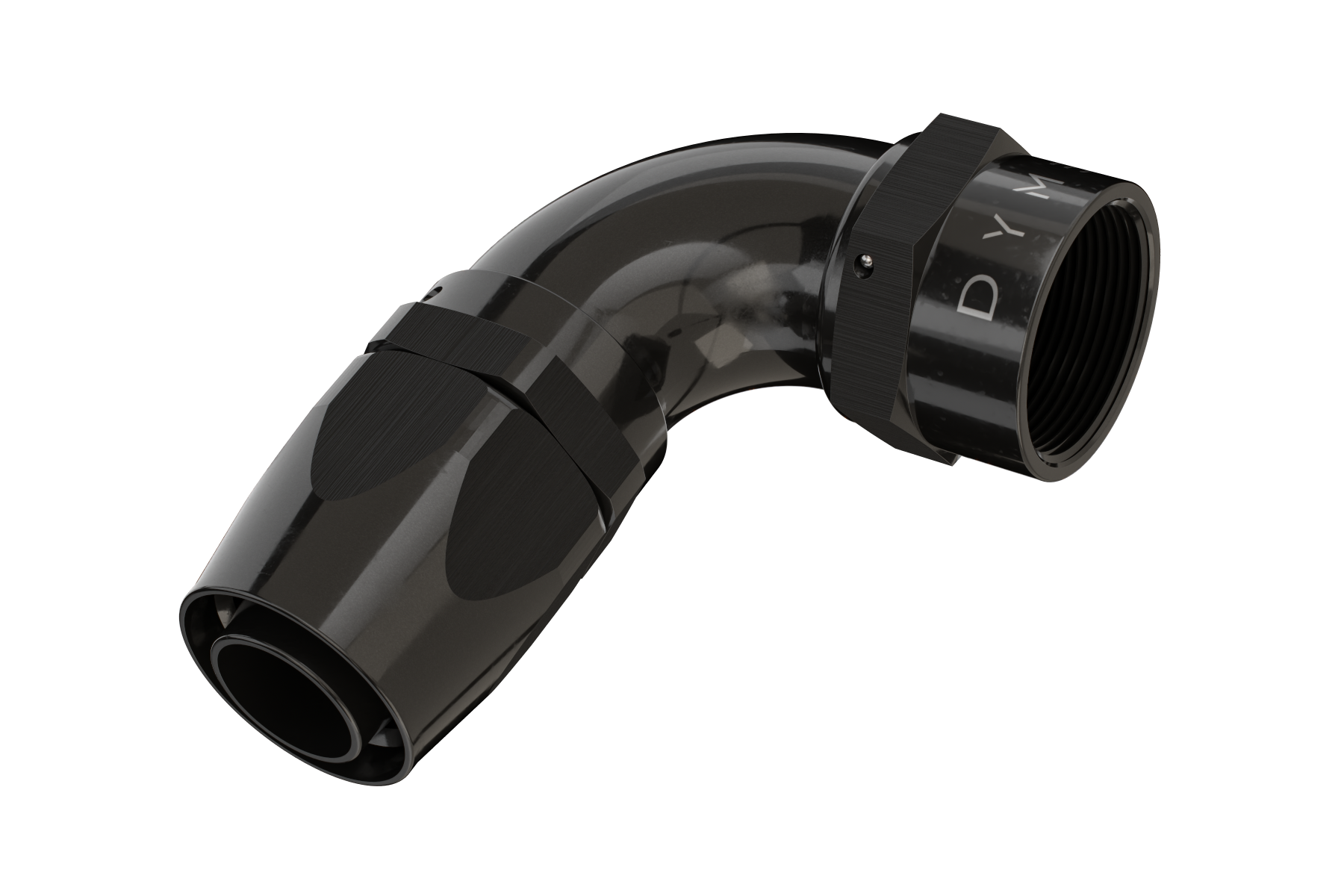

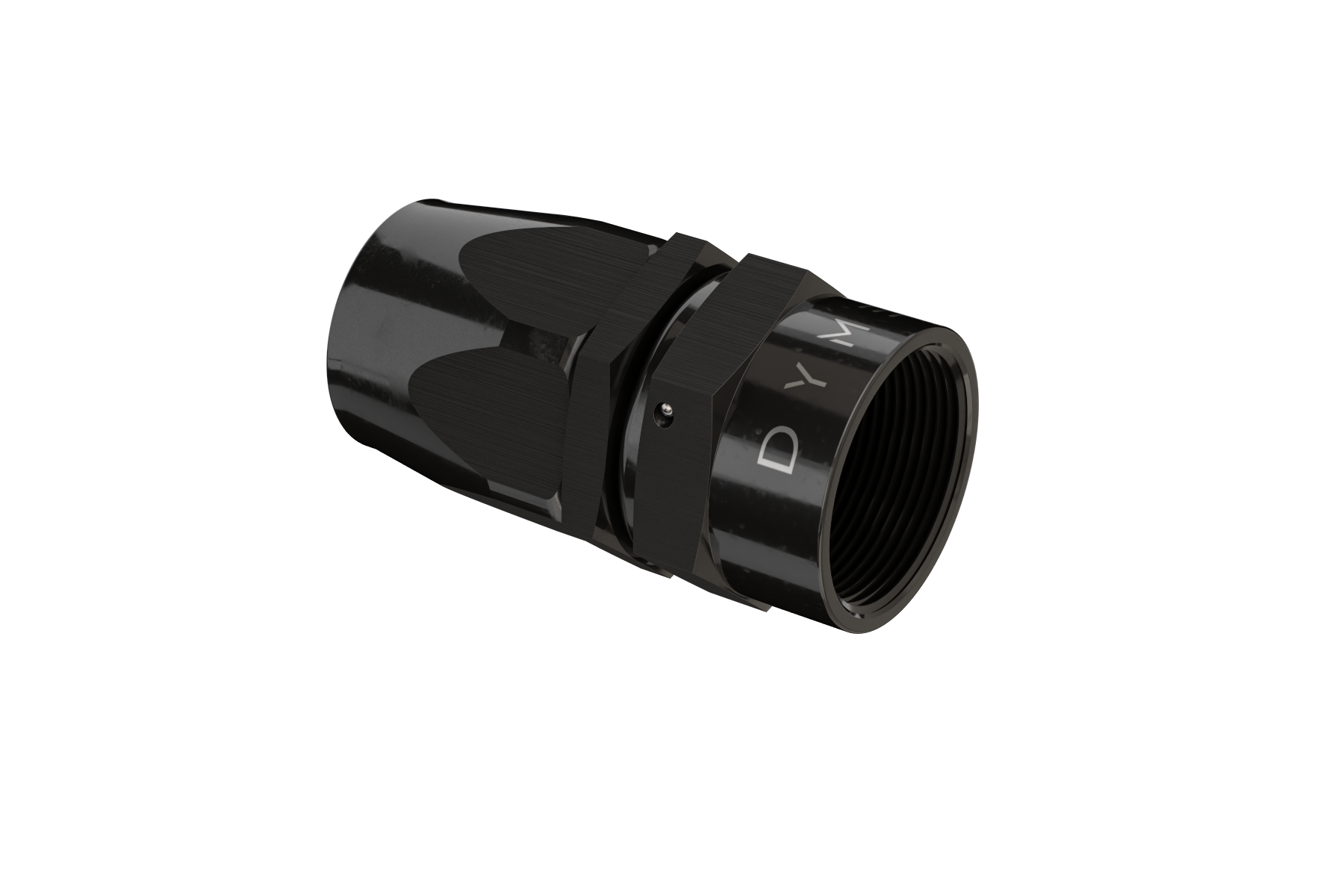

B-TYPE FATBOY AN/JIC 1-PIECE THICK TUBE, NO WELD, REUSABLE FITTING, WITH DUAL SEAL FKM SWIVEL ANGLE ADJUSTMENT, COMPATIBLE WITH SUPERSTRASSE CPE (REUSABLE TYPE) RUBBER HOSE TYPES, ANGLES STRAIGHT THROUGH 180 DEGREE. 6061-T6 BILLET ALUMINUM, BLACK ANODIZED BODY.
FATBOY C-TYPE & B-TYPE COMPRESSION STYLE FITTINGS FEATURE A LEFT HAND THREADED COMPRESSION NUT, SCREW THIS NUT ONTO THE RUBBER HOSE IN A LEFT HANDED DIRECTION UNTIL IT BOTTOMS OUT ON THE HOSE, THEN SCREW THE LUBRICATED MALE SIDE OF THE FITTING INTO THE NUT AND HOSE COMBINATION UNTIL BOTTOMED OUT. MARK THE POSITION OF THE HOSE IN THE NUT TO ENSURE THE HOSE IS NOT PUSHED OUT DURING ASSEMBLY.
