Description
ProLine STD Range
Setrab ProLine STD range oil coolers are the most flexible high-performance oil coolers on the market. The ProLine STD series integrates low-profile 22mm female ports for adaptability to any system using ProLine adapter fittings.
The stacked-plate style of Setrab's STD range offers the advantage of many height possibilities within the various series' widths. In addition, this technique coupled with state-of-the-art brazing technology makes for a durable, highly-efficient, and beautifully simplistic design that is often imitated but never replicated.
ProLine STD Fanpacks
Setrab ProLine STD Fanpacks combine the already high-performing and versatile heat exchange characteristics of the range of Setrab ProLine STD oil coolers with high-volume, low-profile fans and robust fan shrouds to create a cooling package that is unparalleled in performance and versatility.
|

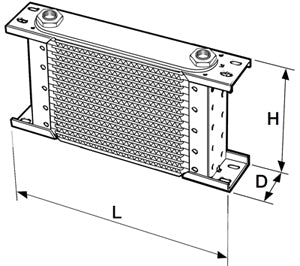

Type
|
Depth mm | Length mm | Height mm |
| STD 107 | 50 | 210 | 52 |
| STD 110 | 50 | 210 | 76 |
| STD 113 | 50 | 210 | 99 |
| STD 116 | 50 | 210 | 122 |
| STD 119 | 50 | 210 | 146 |
| STD 125 | 50 | 210 | 193 |
| STD 150 | 50 | 210 | 389 |
| STD 172 | 50 | 210 | 562 |
| STD 607 | 50 | 330 | 52 |
| STD 610 | 50 | 330 | 76 |
| STD 613 | 50 | 330 | 99 |
| STD 616 | 50 | 330 | 122 |
| STD 619 | 50 | 330 | 146 |
| STD 625 | 50 | 330 | 193 |
| STD 634 | 50 | 330 | 264 |
| STD 640 | 50 | 330 | 310 |
| STD 644 | 50 | 330 | 342 |
| STD 650 | 50 | 330 | 389 |
| STD 910 | 50 | 405 | 76 |
| STD 913 | 50 | 405 | 99 |
| STD 915 | 50 | 405 | 115 |
| STD 919 | 50 | 405 | 146 |
| STD 925 | 50 | 405 | 193 |
| STD 934 | 50 | 405 |
264 |
