Description

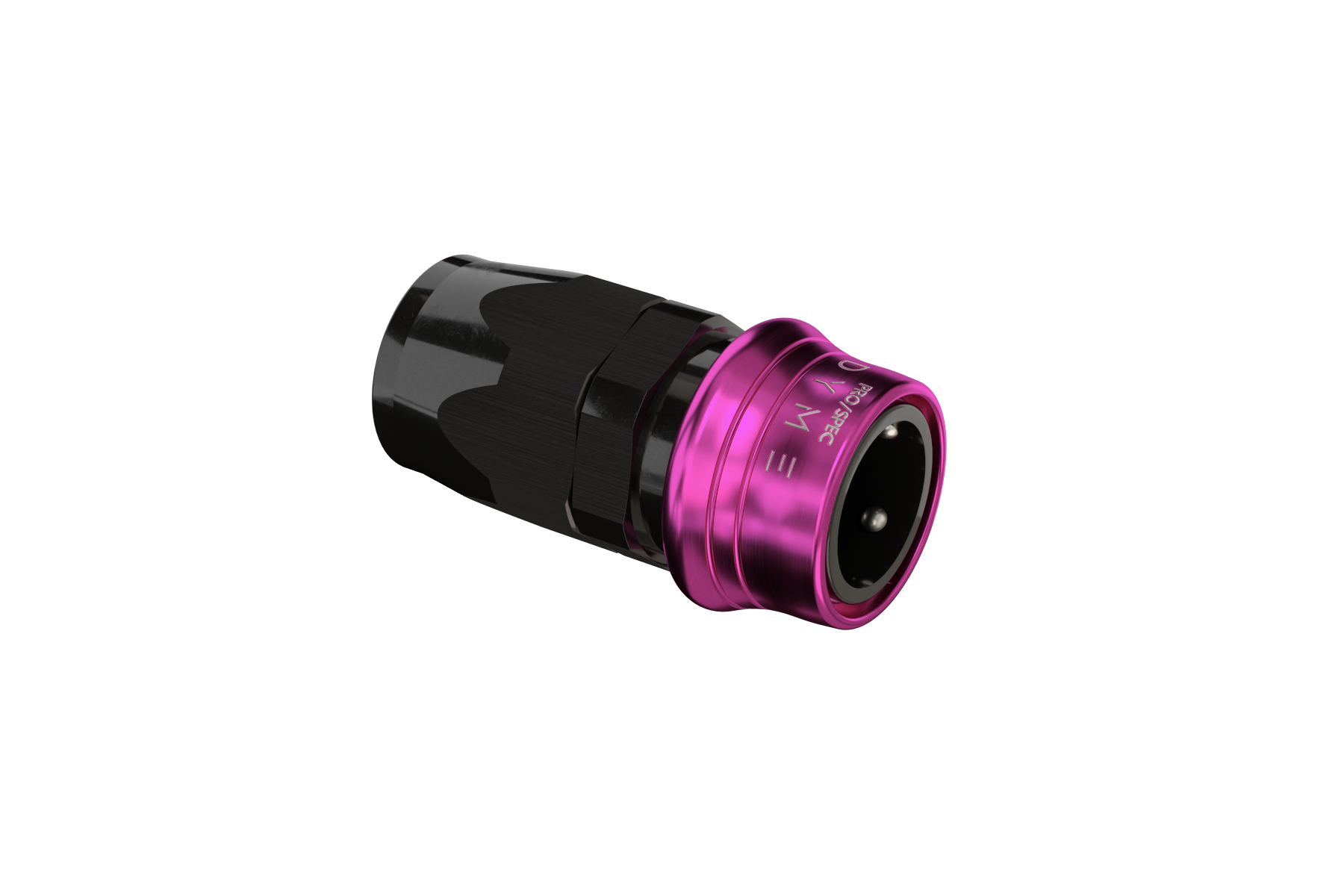

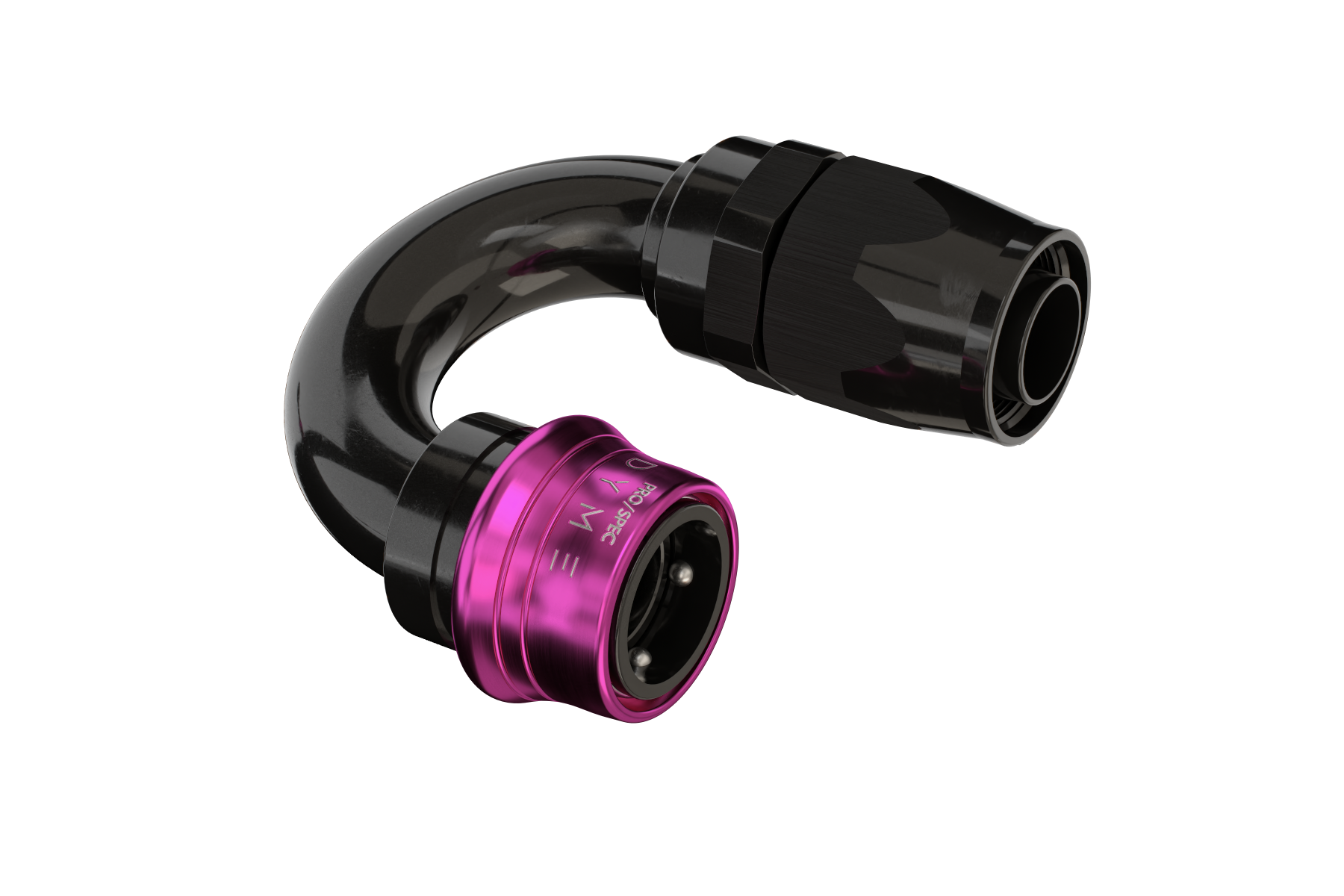

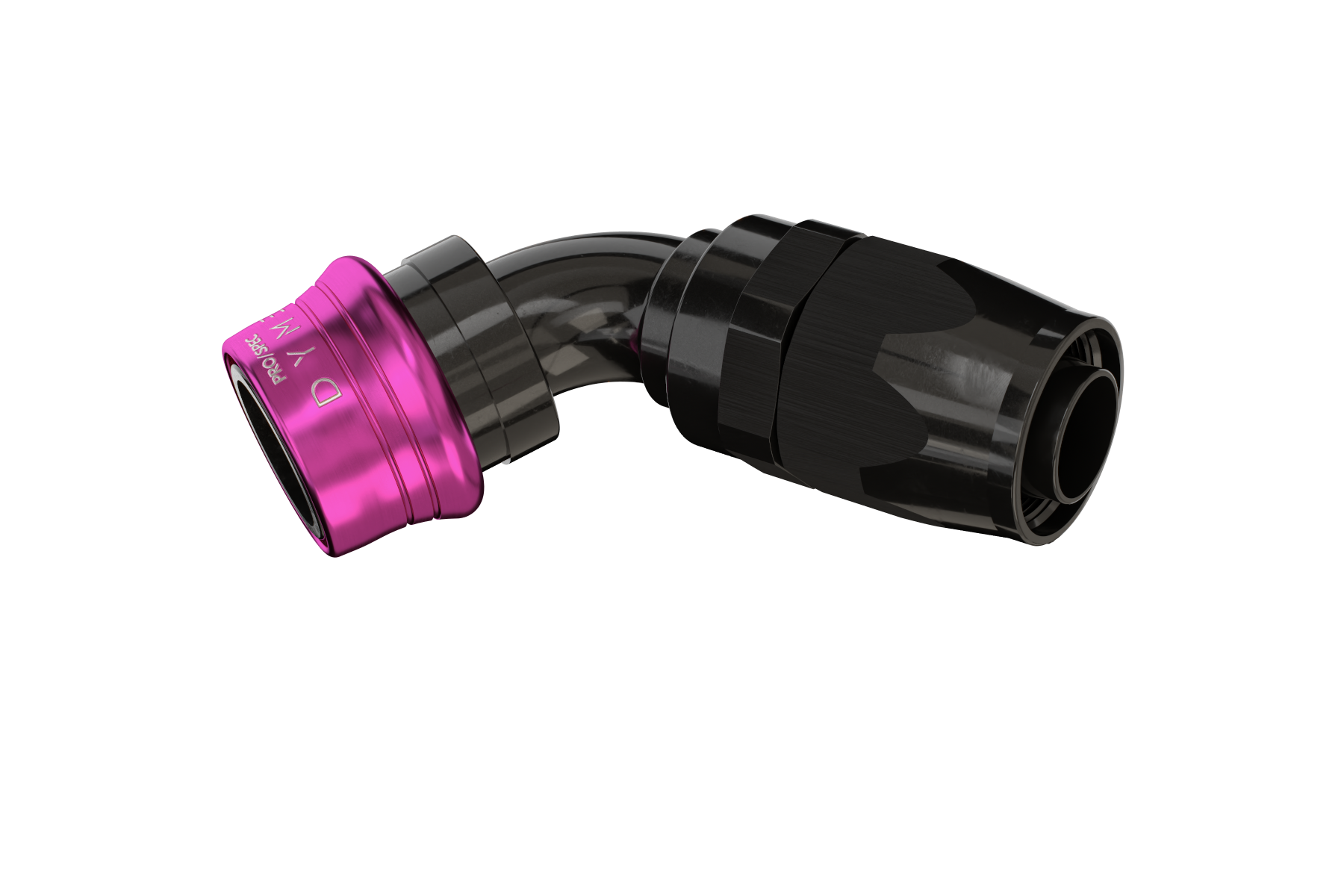

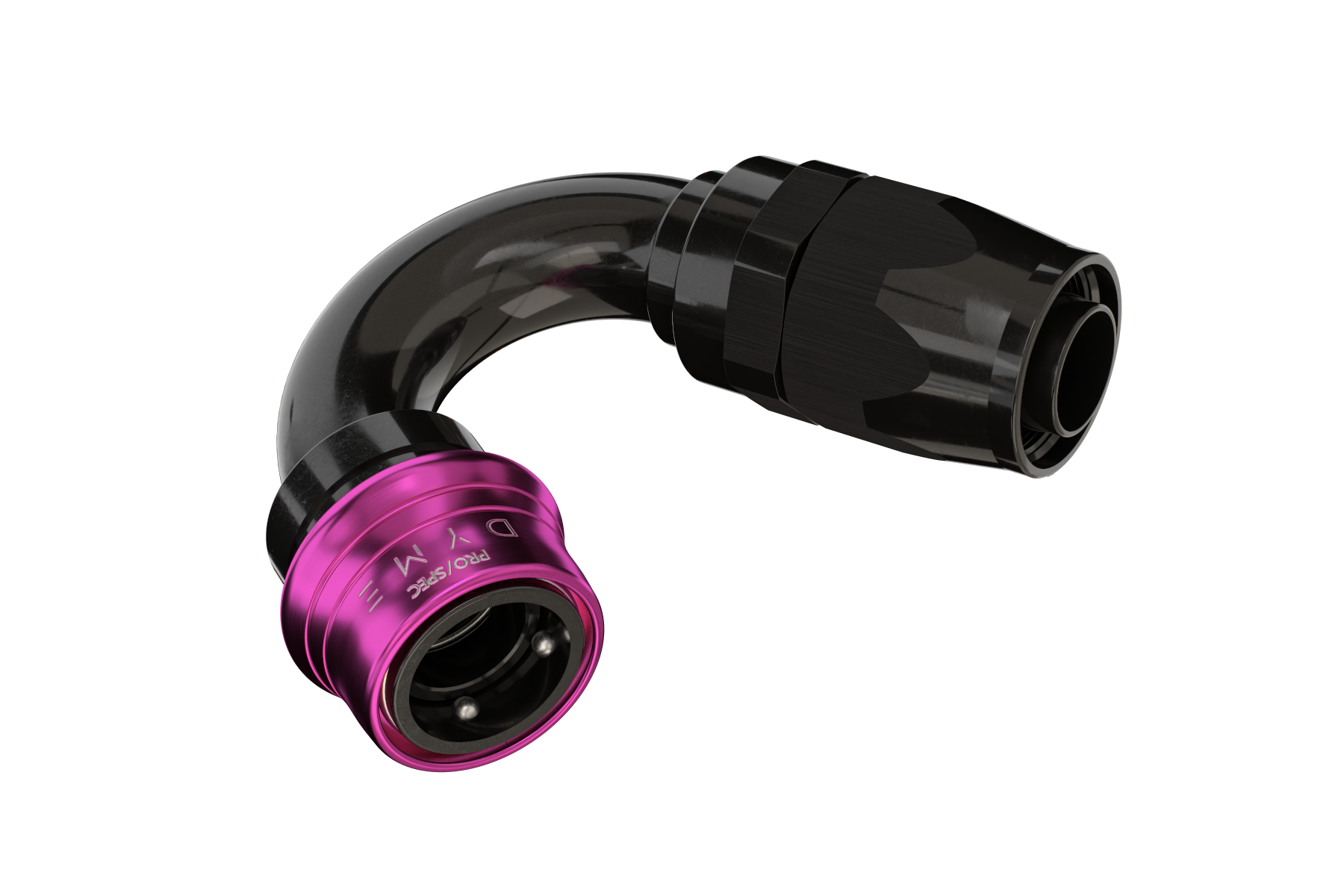

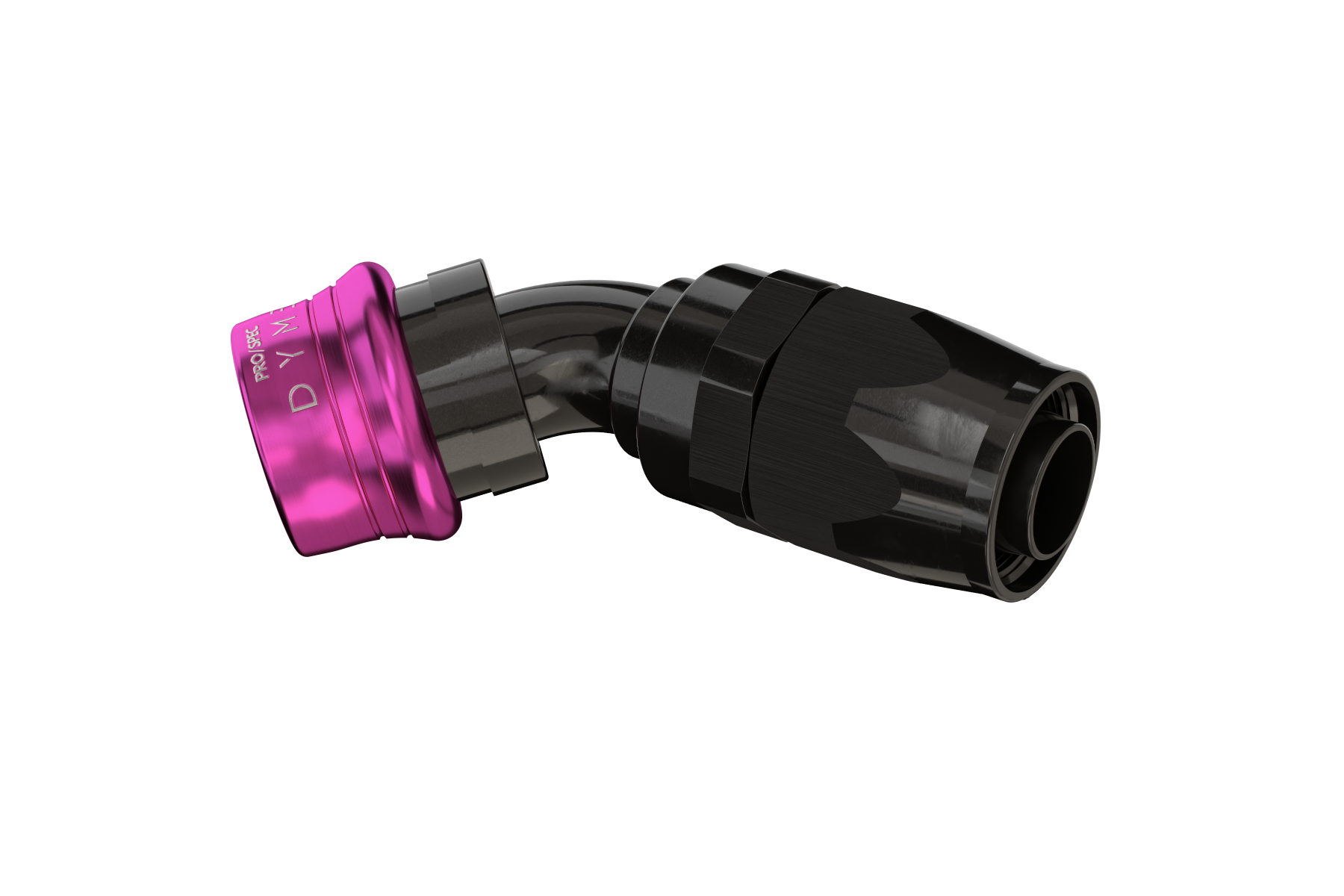

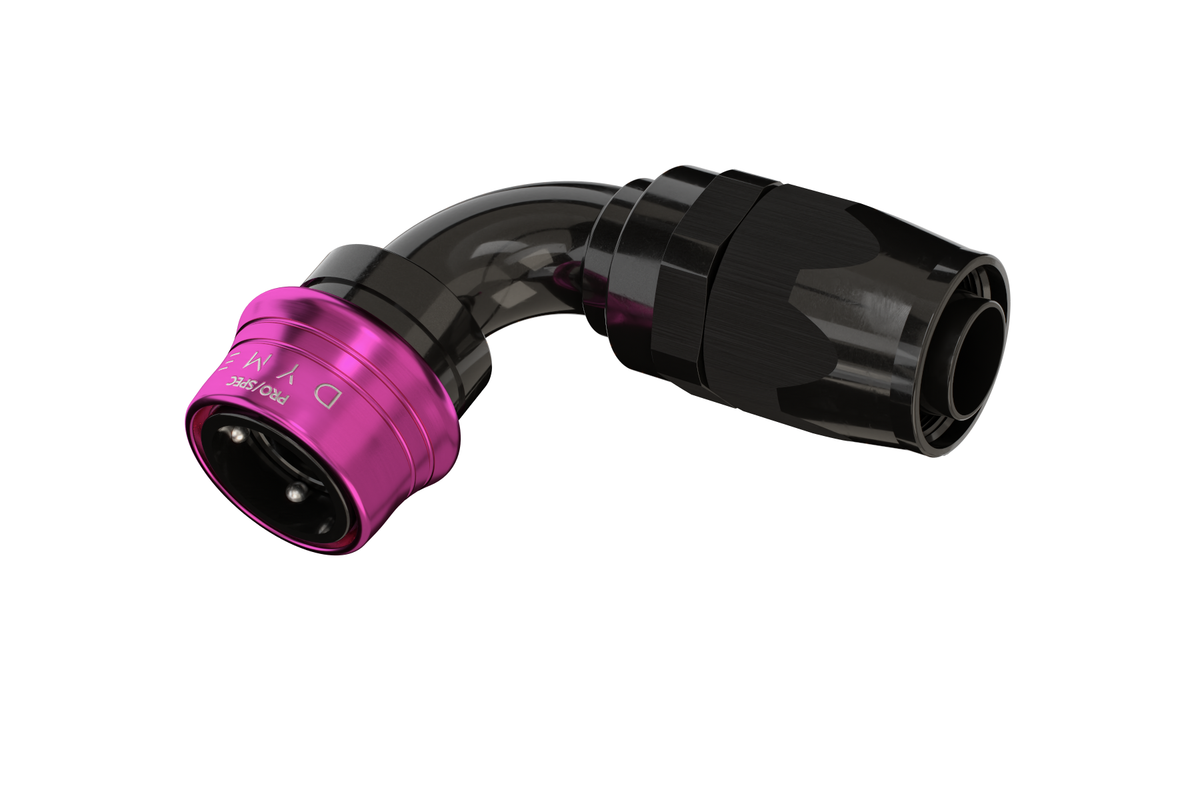

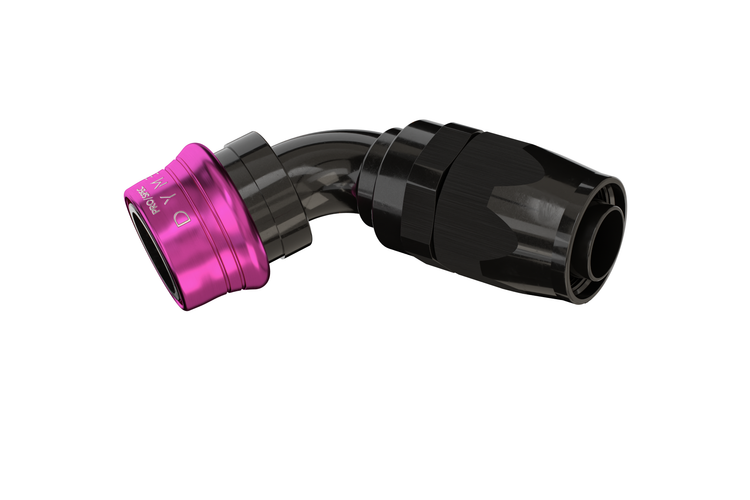

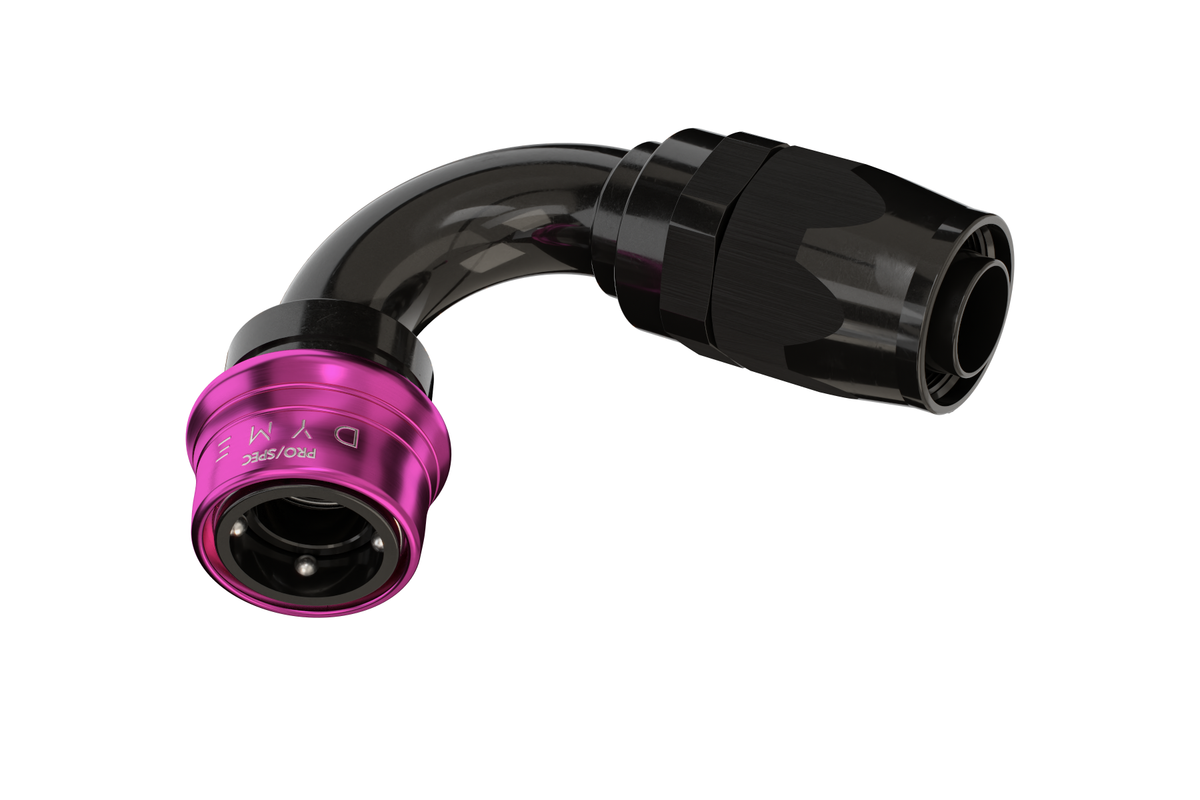

Dyme PRO/SPEC™ B-Type Reusable Swivel: Experience the ultimate flexibility and one-handed tool-free connection, with built in safety features including dual FLUOROK™ FKM O-rings sealing the barrel to the adapter, a secondary overlock channel to jam the pull ring, and a high visibility band to ensure your fitting is locked on at a glance.
The PRO/SPEC™ B-Type crimp-on fitting features our acclaimed quick-release mechanism combined with a 180° swivel joint, sealed by dual FLUOROK™ FKM O-rings for maximum reliability, and a left-hand threaded hose nut that allows for easy assembly of the hose to nut, just screw it on.
KEY FEATURES
-
Forged 6061-T6 Aluminum Body: Black anodized for corrosion resistance and durability. Precision forged and machined, eliminating welded weak points where possible for maximum strength.
-
180° Swivel Adjustment: Ensures easy, stress-free hose routing in tight spaces. Allows post-crimp clocking adjustment for perfect hose alignment (no pre-clocking required).
-
Dual FLUOROK™ FKM Seals: Superior chemical/heat resistance (constant 205°C/401°F). Dual sealing on the fluid connection AND swivel mechanism provides extra redundancy, safety, and virtually eliminates leak paths.
-
Reusable Compression Design: Secure, non-permanent connection for easy assembly of components without the use of specialized equipment, allowing for re-use and servicing of hoses over time.
-
Service Kits Available: Keep your fittings in peak condition for years with replacement seals and component kits.
✅ COMPATIBILITY
-
PRO/SPEC™ B-Type works with these hoses; SUPERSTRASSE-R™ ALCOPRO™ CPE+EPDM+SS (MAX 150°C/302F). Fittings may be compatible with hoses from other brands, however Dyme cannot endorse or guarantee the performance of these combinations.
-
FLUOROK™ FKM Seal Compatibility; Common fuels (gasoline, ethanol), motor oil, gear oil, transmission oil, coolant, air, (constant 205°C/401°F).
⚠️ NOT Compatible With: Methanol & Nitromethane fuels.
-
For Methanol/Nitromethane:* Use PRO/SPEC HM-Type (METHODEX™ seals) or HX-Type (DYMAX-F™ seals), or FATBOY H-TYPE AN fittings.
-
Size-Specific Cross-Compatibility:**
-
PS06/AN06:** Fits SAE J2044 3/8" barbs.
-
PS05/AN05:** Fits 5/16" SAE J2044 barbs.
-
PS sizing is equivalent to AN for selection and flow.
⚠️ IMPORTANT SIZING NOTE:
All PRO/SPEC™ B-Type fittings require a matching PS-size adapter for your specific port. Ensure you select the correct adapter (e.g., a PS08 fitting requires a PS08 adapter, equivalent to AN8). Most options of interfacing thread type and standard are available, along with welding and fabrication options.
WHY CHOOSE PRO/SPEC™?
-
Ultimate Service Convenience: Quickly remove or install parts reliably with the one-handed quick-release.
-
Engineered Safety & Security:
-
A high-visibility neon band on the adapter male side confirms secure locking.
-
Optional secondary lock channel (clip/zip-tie behind pull ring) prevents accidental disconnection.
-
Double-Redundant Sealing: Critical leak paths feature dual seals for ultimate failure prevention.
-
-
Ideal for Confined Areas: Eliminates wrench access issues and the need to remove components for hose service.
-
Patented Innovation (US & International Patents Pending).
-
Proven Under Extreme Conditions: Rigorously validated for vibration, pressure cycling, thermal shock, and tested to structural failure of adapter at 10,000 PSI.
-
Track-Proven Reliability: Trusted by performance builders globally for critical fuel, oil, air, and coolant systems.
⚠️ Note: Crimping tool required. Refer to https://www.dymepsi.com/technical for detailed crimping specifications, hose preparation, and full compatibility data.
U.S. & International Patents Pending.
