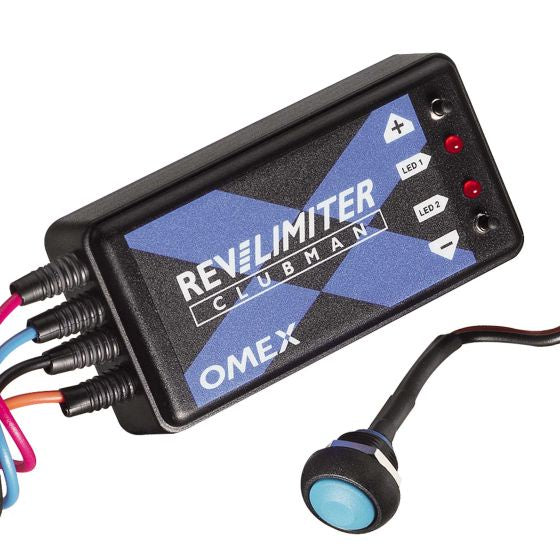

OMEX Clubman Rev Limiter With Launch Control

The clubman rev limiter with launch control from Omex features a user selectable hard or soft cut. The award winning microprocessor based design provides one of the smoothest cuts found on an aftermarket rev limiter. This rev limiter has an additional button operated lower rev limit to reduce wheel spin from the start line and is supplied complete with a waterproof switch for steering wheel, dashboard or gear knob mounting.

• Protects engines from over revving
• Very smooth engine cut
• Launch control button reduces wheel spin on standing starts

The limit can be set from 1,000 RPM to 20,000 RPM for 2 cylinder and 4 cylinder, 12,000 RPM for 6 cylinder and 10,000 RPM for 8 cylinder. This rev limiter is available in two options of single coil and twin coil and is not suitable for CDI ignition systems.

All Omex microprocessor based shift lights and rev limiters feature Omex's acclaimed method of calibration. Shift point and rev limit is set independently of the car's tachometer, thereby removing any instrument error by incrementing in steps of 100 RPM by simply pressing a button on the unit. Precise digital timing ensures response within one engine revolution.

Please note: Not compatible with an amplified coil ignition system.

Full Install Instructions available here

http://omextechnology.co.uk/OMRLCLCT%20v2_4.pdf

Which Rev Limiter Works with my Ignition System?

 Magneto and CD ignition systems are NOT compatible.

Positive earth Vehicles are not compatable

Rotary engines are not compatable

Diesel engines are not compatable
